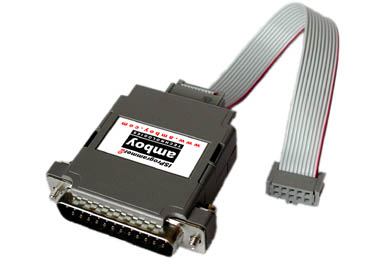

Product Name: ISProgrammer2
Part Number: ISPROGRAMMER2
Price: $75.00
ISProgrammer2 SOLD OUT
Description:
This parallel port programming cable is a 100%-compatible drop-in replacement for Altera Byteblaster II download cable.

NOTE: Neither ByteBlaster II nor ISProgrammer2 are drop-in replacements for legacy ByteBlaster or ByteblasterMV download cables. ByteBlaster II and ISProgrammer2 are not recognized by legacy MAX+PLUS II software. Use ISProgrammer to replace ByteBlasterMV or ByteBlaster for use with MAX+PLUS II software.

The ISProgrammer2 features the following functions:

  • Provides a fast and low-cost method for in-system programming.
  • Supports operation for target systems using 5.0 V TTL, 3.3 V LVTTL/LVCMOS, and single-ended I/O standards from 1.5 V to 3.3 V.
  • Downloads data from Altera Quartus II development software, Nios II IDE, and Nios II IDE Flash Programmer
  • Programs MAX 9000, MAX 7000S, MAX 7000A, MAX 7000B, and MAX 3000A devices in-system via a standard PC parallel port.
  • Configures Cyclone, Stratix, APEX II, APEX 20K (including APEX 20K, APEX 20KE, and APEX 20KC), ACEX 1K, Mercury, FLEX 10K (including FLEX 10KA and FLEX 10KE), FLEX 8000, and FLEX 6000 devices and Excalibur embedded processor solutions.
  • Supports in-system programming of advanced configuration devices including EPC2, EPC4, EPC8, EPC16, EPC1441 and serial configuration devices including EPCS1, EPCS4, EPCS16, and EPCS64 devices.
  • Supports SignalTap II logic analysis in the Quartus II software.
  • Uses a 10-pin circuit board connector identical to the ByteBlasterII, ByteBlasterMV and ByteBlaster connector.
The ISProgrammer2 is supplied with a 6-in (15-cm) detachable 10-lead board-connector cable. Unlike the ByteBlaster II, the cable is equiped with a standard 10-pin keyed female socket connector at each end. This provides an easy way to detach and replace the supplied cable with custom board-connector cables for applications requiring specific board connectors.
In addition, the optional ISProgrammer Extension Cable can be used to extend the physical reach of the programmer.
ISProgrammer2 Specifications:

connectors:
25-pin D-sub male, metal shell
10-pin shrouded header connector
board-connector cable:
detachable 10-lead pin-to-pin gray flat ribbon cable with socket connectors, standard length: 6 in. (15 cm)
